Are GPU Fans Intake or Exhaust? The Simple Answer

GPU fans are intake fans. They pull cool air from inside the case onto the card's heatsink to carry away heat from the GPU die, VRAM, and power components. What happens to that heated air afterward depends entirely on the cooler design: an open-air card releases it into the case, a blower card ducts it straight out the rear I/O bracket, and a hybrid or AIO card moves it to a radiator. Nearly every modern consumer graphics card uses open-air cooling, which is why case airflow now matters more than it used to for keeping a GPU cool.

Open-air vs. blower vs. hybrid: where the heat actually goes

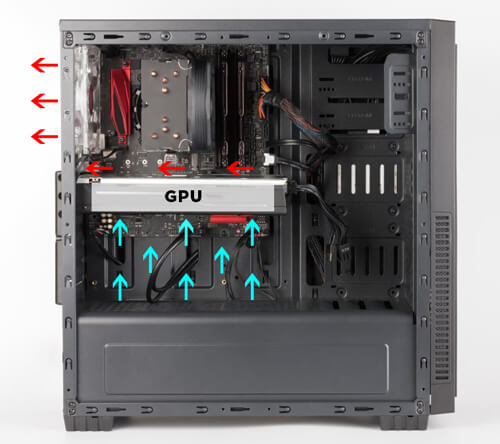

Open-air coolers are the standard on today's consumer cards, from budget models up through flagship GeForce and Radeon cards. Two or three axial fans sit on top of an exposed heatsink with no shroud around it. The fans pull air down through the fin stack, and the warmed air escapes out the sides, top, and bottom of the card directly into the case. This design allows for bigger heatsinks and quieter, lower-RPM fans, but it depends on the case's own fans to move that heat out before it recirculates.

Blower-style coolers use a single radial (squirrel-cage) fan enclosed in a plastic shroud. Air still comes in as intake, but it's funneled through the heatsink and pushed out a vent in the rear bracket, exhausting entirely outside the case. Blowers were common on reference cards a decade ago but have largely disappeared from consumer graphics cards — most manufacturers moved to open-air designs because they cool better and run quieter. Blowers haven't vanished entirely, though: Nvidia's workstation-focused RTX PRO 6000 Blackwell Max-Q still ships with a blower, specifically because it lets several of these cards sit stacked in a workstation without dumping heat onto the card next to them.

Hybrid and AIO-cooled GPUs pair a waterblock on the GPU die with fans mounted on a radiator, usually installed as a case exhaust fan. The small fan or two still on the card itself (if any) handles VRAM and VRM cooling as intake, while the radiator fans push the bulk of the heat out of the case.

Founders Edition cards (RTX 30/40/50 series) don't fit neatly into either camp. Nvidia's design pulls air in through one fan and pushes it straight through the card and out the other side, rather than dumping it sideways into the case — a "flow-through" design. The RTX 50-series Founders Edition refined this into a "Double Flow Through" cooler: with the PCB shrunk and centralized, both fans can now push air cleanly through the entire heatsink instead of one fan being partially blocked by the board, as happened on the RTX 40 series. Nvidia pairs the design with a vapor chamber and liquid metal thermal paste to handle up to 600W while staying quieter than the previous generation's cooler at less than half the wattage.

How to set up case airflow for your GPU

Because most cards now vent heat into the case rather than out the back, your case fans do a meaningful share of the cooling work. A dependable default setup:

• Front intake, rear and top exhaust. Cool air comes in the front (and bottom, if your case supports it), crosses the components, and leaves through the rear and top.
• Aim for slight positive pressure. Keep total intake airflow modestly higher than exhaust — roughly 10-20% more — so the case stays slightly pressurized. This pushes dust out through gaps and seams instead of pulling it in through them.
• Bottom intake fans help the GPU specifically, since they sit right below the card and feed cool air directly into its fans before it has a chance to warm up elsewhere in the case.
• Don't starve the exhaust. If a case has no rear or top exhaust fan at all, hot air can pool near the GPU with nowhere to go, even with good intake.

A couple of affordable case fans go a long way toward fixing a case that's starving its GPU: Check price on Amazon.

Why your GPU fans aren't spinning (and why that's fine)

Nearly every GPU built in the last several years ships with a zero-RPM or "fan-stop" mode: the fans stay completely off at idle and light desktop use, and only spin up once the card crosses a set temperature — typically somewhere in the 45-60°C range depending on the manufacturer. Below that threshold, the passive heatsink handles the small amount of heat on its own. Seeing your GPU fans sit still while browsing or watching video is normal behavior, not a fault.

If the fans stay off under real load — gaming, rendering, benchmarking — and temperatures climb well past the card's normal range, that's when it's worth investigating: check that the PCIe power cables are fully seated, confirm the fan curve in the manufacturer's software (MSI Afterburner, GPU Tweak, AMD Adrenalin) hasn't been set too conservatively, and update graphics drivers. Persistent silence under load with rising temperatures usually points to a stuck fan or a bad connection rather than a setting.

How to check which way your GPU's fans blow

You don't need special tools to confirm your card's airflow direction:

1. Identify the cooler type. If you can see bare heatsink fins around or between the fans, it's open-air (intake into the case). If the fans are hidden behind a fully enclosed shroud with a vent only at the rear bracket, it's a blower (exhaust out the back).
2. Run the tissue test. With the case open and the GPU under load (running a game or benchmark), hold a strip of tissue paper or paper towel near the fans. It should get pulled toward the heatsink, confirming intake.
3. Check the rear bracket. On a blower card, you'll feel distinctly warm air blowing out through the vent slots when the card is working hard.

Should GPU fans face up or down?

In a standard tower case, the graphics card mounts with its fans facing down, toward the bottom of the case. That's by design: cooler air settles near the case floor, so the downward-facing fans draw in the coolest air available while the heat they push through the fin stack escapes around the card and rises. It's also why bottom-mounted case intake fans pair so well with an open-air GPU — they deliver fresh air straight up into its fans.

Vertical GPU mounting: does it help or hurt?

Mounting a GPU vertically with a riser cable, so it faces the case's side panel instead of the motherboard, is mostly a cosmetic choice, and it comes with a thermal trade-off worth knowing about. If the card ends up pressed close to a solid glass panel, its fans can end up starved of fresh air and re-breathing their own exhaust, which raises temperatures. The fix is spacing: a card needs a few inches of clearance to the panel, and a mesh or vented side panel instead of solid glass, to keep pulling in outside air rather than recycling hot air trapped against the glass.

Small form factor "sandwich" cases — where the GPU sits on the opposite side of a divider from the motherboard, facing its own vented panel — are a different situation. These cases are designed around vertical mounting from the start, giving the GPU a direct, unobstructed path to fresh air through its own side panel rather than sharing airflow with the rest of the build. Vertical mounting in a case not designed for it, purely to bolt on a GPU bracket for looks, is where the thermal penalty shows up. A GPU support bracket also helps prevent the card from sagging on its riser cable or slot, which can stress the PCIe connector over time: Check price on Amazon. Sagging itself is a separate, more mechanical concern — see our breakdown of whether GPU sag can actually cause crashes for that.

A few things not to do

• Don't reverse or modify a GPU fan's spin direction. The fan, heatsink, and shroud are engineered together as intake; reversing airflow undermines the cooling design and can raise temperatures rather than help.
• Clean with compressed air, not by spinning the fans by hand or letting compressed air spin them freely. Hold each fan still with a finger while blowing out dust to avoid over-spinning the bearing, which can shorten its life.
• Don't ignore rising idle temperatures over time. Dust buildup on the heatsink fins is the most common reason a card that used to run cool starts idling warmer.

Frequently asked questions

Are GPU fans intake or exhaust? Intake. They pull cool air onto the heatsink. Whether that air then vents into the case (open-air), out the back (blower), or through a radiator (hybrid/AIO) depends on the cooler type.

Why aren't my GPU fans spinning? Almost certainly zero-RPM idle mode — a standard feature that keeps fans off below roughly 45-60°C. It's only worth troubleshooting if the fans stay silent under sustained heavy load while temperatures climb.

Should case fans blow toward the GPU? Yes. Front and especially bottom intake fans positioned to feed air toward the GPU help it pull in cooler air instead of recirculating warm air, particularly on open-air cards that vent into the case.

Are blower GPUs bad? Not inherently — they're just less common now. They run louder and usually hotter than an equivalent open-air card, but they don't depend on case airflow, which is why they're still used in multi-GPU workstation setups like Nvidia's RTX PRO 6000 Blackwell Max-Q.

The final verdict

GPU fans intake cool air onto the heatsink — that part is fixed across virtually every card on the market. What changes is where the resulting heat goes: into the case on open-air cards (the vast majority today), out the back on blowers, or into a radiator on hybrid and AIO models. Set your case up with steady front-to-back, bottom-to-top airflow and slight positive pressure, and an open-air GPU will take care of the rest. If you're troubleshooting a build rather than a single card, it's also worth checking whether your PC can even run without a GPU installed or reviewing whether a dual graphics card setup still makes sense at all before assuming a fan problem is the culprit.
